Step 1) Setup Oracle DB
I will provide the documentation on how to setup oracle DB later.
Or refer this link - https://www.server-world.info/en/note?os=CentOS_8&p=oracle19c&f=2
Step 2) Start Oracle DB
[osboxes@machine1 database]$ pwd
/home/osboxes/database
[osboxes@machine1 database]$ . /usr/local/bin/oraenv
ORACLE_SID = [HRDATABASE] ? HRDATABASE
The Oracle base has been set to /home/osboxes/oracledb
[osboxes@machine1 database]$ sqlplus / as sysdba
SQL*Plus: Release 19.0.0.0.0 - Production on Mon Feb 1 00:40:08 2021
Version 19.3.0.0.0
Copyright (c) 1982, 2019, Oracle. All rights reserved.
Connected to an idle instance.
SQL> STARTUP
ORACLE instance started.
Total System Global Area 763359832 bytes
Fixed Size 8901208 bytes
Variable Size 486539264 bytes
Database Buffers 264241152 bytes
Redo Buffers 3678208 bytes
Database mounted.
Database opened.
SQL> show user;
USER is "SYS"
SQL> exit
[osboxes@machine1 bin]$ pwd
/home/osboxes/database/bin
[osboxes@machine1 bin]$ lsnrctl start
LSNRCTL for Linux: Version 19.0.0.0.0 - Production on 01-FEB-2021 00:42:37
Copyright (c) 1991, 2019, Oracle. All rights reserved.
Starting /home/osboxes/database/bin/tnslsnr: please wait...
TNSLSNR for Linux: Version 19.0.0.0.0 - Production
Log messages written to /home/osboxes/oracledb/diag/tnslsnr/machine1/listener/alert/log.xml
Listening on: (DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=localhost)(PORT=1521)))
Connecting to (ADDRESS=(PROTOCOL=tcp)(HOST=)(PORT=1521))
STATUS of the LISTENER
------------------------
Alias LISTENER
Version TNSLSNR for Linux: Version 19.0.0.0.0 - Production
Start Date 01-FEB-2021 00:42:37
Uptime 0 days 0 hr. 0 min. 0 sec
Trace Level off
Security ON: Local OS Authentication
SNMP OFF
Listener Log File /home/osboxes/oracledb/diag/tnslsnr/machine1/listener/alert/log.xml
Listening Endpoints Summary...
(DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=localhost)(PORT=1521)))
The listener supports no services
The command completed successfully
Step 3) Configure Data Source with following specifications.
Name: testOracleDS
JNDI Name: testOracleDS
Database Type: Oracle
Database Driver: Oracle's Driver (Thin) for Service connections; Versions:Any
Database Name: HRDATABASE
Host Name: machine1
Port: 1521
Database User Name: PBPUBLIC
Password: PBPUBLIC
Initial Capacity: 5
Maximum Capacity: 15
Capacity Increment: 5
Login Delay: 1
Target: Cluster_1

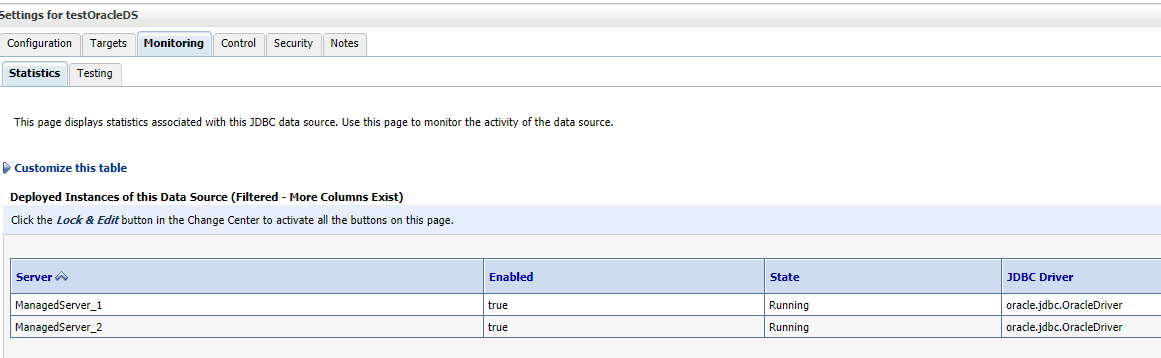

Test Data Source Configuration

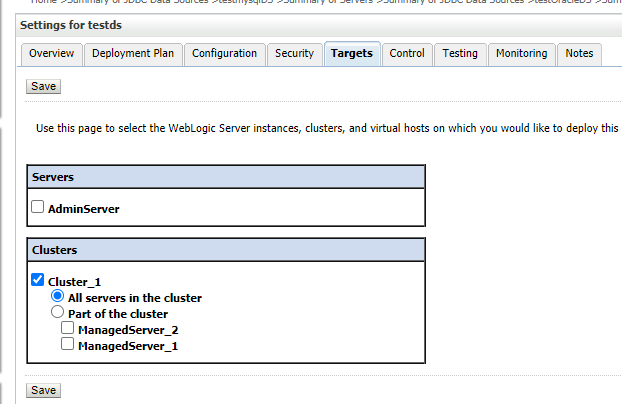

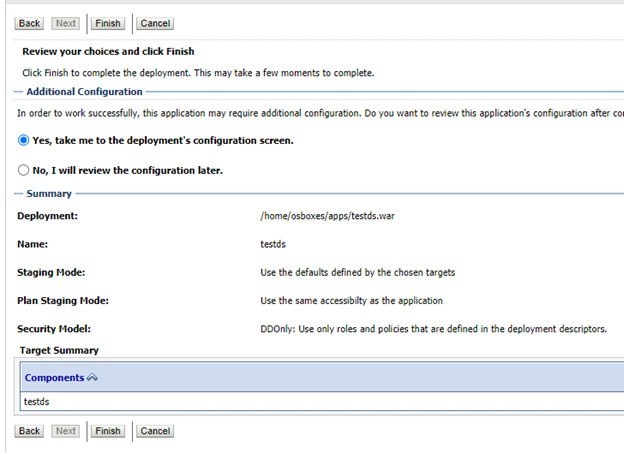

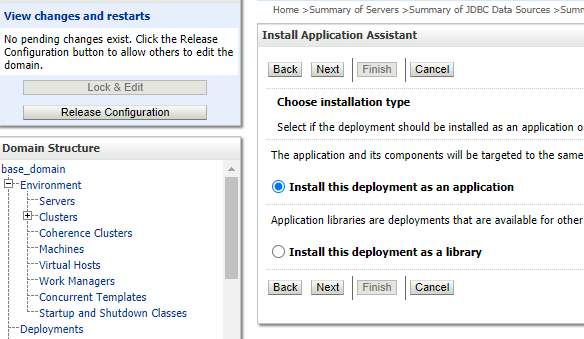

Step 4) Deploy testds.war application

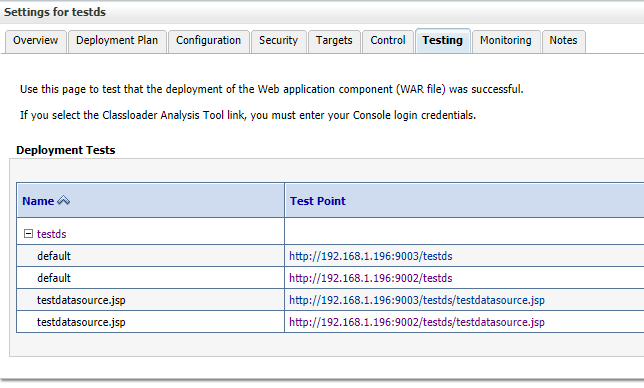

Step 5) Test the Application Data Base connectivity on MangedServer_1 and ManagedServer_2
http://192.168.1.196:9002/testds/
http://192.168.1.196:9003/testds
Step 6) Verify the Logs
[osboxes@machine1 logs]$ pwd
/home/osboxes/Oracle/Middleware/Oracle_Home/user_projects/domains/base_domain/servers/ManagedServer_1/logs
[osboxes@machine1 logs]$ tail -5 ManagedServer_1.out
<Feb 1, 2021, 1:17:02,640 AM Eastern Standard Time> <Warning> <Socket> <BEA-000449> <Closing the socket, as no data read from it on 192.168.1.5:58,054 during the configured idle timeout of 5 seconds.>
Looking up the testOracleDS data source.
Getting the connection from the database.
Querying the database.
<Feb 1, 2021, 1:18:17,639 AM Eastern Standard Time> <Warning> <Socket> <BEA-000449> <Closing the socket, as no data read from it on 192.168.1.5:58,060 during the configured idle timeout of 5 seconds.>
/home/osboxes/Oracle/Middleware/Oracle_Home/user_projects/domains/base_domain/servers/ManagedServer_2/logs
[osboxes@machine1 logs]$ tail -5 ManagedServer_2.out
<Feb 1, 2021, 1:19:49,782 AM Eastern Standard Time> <Warning> <Socket> <BEA-000449> <Closing the socket, as no data read from it on 192.168.1.5:58,077 during the configured idle timeout of 5 seconds.>
Looking up the testOracleDS data source.
Getting the connection from the database.
Querying the database.
<Feb 1, 2021, 1:20:34,781 AM Eastern Standard Time> <Warning> <Socket> <BEA-000449> <Closing the socket, as no data read from it on 192.168.1.5:58,081 during the configured idle timeout of 5 seconds.>
[osboxes@machine1 logs]$
